Biggest day yet, part II

Blogger kept crashing on me near the end of the last post, so I elected to split them into two posts. If you haven't yet read about shaping the braces, read the next post before this one.

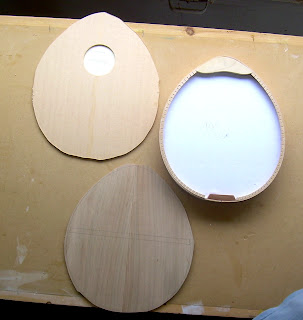

Here you can see the top and back, along with the cutoffs (which the plan suggests keeping for use as cauls later in the project). On the right are the three major components to date – the top, the sides and kerfing, and the back.

And here's an exciting photo – I stacked the parts together on the benchtop just for giggles and took a photo. At some point in the near future the instrument will be glued together like this and then the top and back will be trimmed to final shape. I just thought it would be cool to see it like this.

Since I still had several hours (at this point I had spent only about 1.5 of my 6 or so) I decided to cut out the soundhole as well. Now, the plans suggest cutting the soundhole patch using a hobby knife. I had been dreading this step because I was frankly worried that I would cut this poorly and damage the top by over cutting. It had to get done sometime, though – so here it goes.

The photo on the left shows the soundhole from the kit manufacturer with the soundhole patch glued over it. The photo on the right shows the results of the rough-in cut out (as suggested by the plans I made a first cut a bit shy of the edges of the soundhole, followed by a final cutout to actual shape). As you can see in the left photo below, I did some minor damage to the top wood surrounding the soundhole when cutting it out just as I had worried. However, the next step in the plan is to smooth and bevel the edges of the soundhole with sandpaper so I decided not to worry too much about minor damage. Fortunately the damage turned out to be very minor indeed – the photo on the right is the soundhole after smoothing and rounding with some 120 grit sandpaper (the MDF of my benchtop is also visible here, and it might make the soundhole hard to make out. Sorry.)

These last two photos are of the top after all the work of today was complete. The one on the left is of the inside of the top (the side that will not be visible after the instrument is complete). You can see the soundhole patch and the markings for all the braces in this photo. The one on the right is of the outside of the instrument.

Next time I will be sanding the kerfing to match the curvature of the top and back, and gluing in some of the braces. Not too long until the body is largely complete!

Biggest day yet

Wow! I got several hours to work in the shop today and the outcome was better than I could have imagined. My wife took the kids and went off the visit her parents, and she instructed me (this is why I know she's the right girl) to work on the mandolin. I got more accomplished today than any other day of work on it yet!

I started off by shaping the braces for the top and back. The kit includes a specially sized “sanding stick” made of ¼” plywood. They even included a little piece of the same plywood for use as a caul for clamping the stick to the benchtop. The kit designers thought this step out well, and planned for it well, too – the caul that was included for the outside of the sides at the neck block it just the right height at the edges to result in the proper radius of curvature when used to elevate the non-clamped part of the stick. The following pictures should give some idea of what the heck I'm talking about:

The photo on the left shows the stick clamped to the benchtop and propped up at the other end using the neck block caul. A clamp holds the neck block caul in place – I found that the two clamps at the bench kept the stick from rotating sufficiently. As directed by the instructions I also supported the stick at two other points along its length; one of the supports is the tail block caul and the other is a piece of scrap left over from the toolbox I built for my son for his birthday. The picture on the right shows the same setup from above just for clarity. You can see the self-adhesive sandpaper (80-grit as recommended) in the photos.

The instructions say to sand one of the braces and compare it to the drawings, adjusting the curve by moving the neck block caul in or out until the curvature is satisfactory. You then sand all of the braces using that same setup so that they are the same. I found that, by luck, my setup worked out very well the first time, so I went about sanding all of the braces to the curvature shown on the plans (which the instructions helpfully tell me is about an 8' radius).

The picture on the left is an action shot of me sanding one of the braces. I used a longitudinal motion to sand them – that is along the length of the stick and not side to side across it. This just seemed easier and the results were good, so I guess it's OK – at any rate it matched the grain direction so it made for clean sanding. The photo on the right shows the completed braces. Note that there are two #3 braces.

The next step is rough-cutting the back and top. I had not originally planned to do this today, but the shaping of the braces went so well and so quickly that I decided to have at it. The instructions say to cut the top and back with a bandsaw if you have one. Since I do I decided to give this a shot.

Up until today I had not had luck with my bandsaw, which I bought used (along with almost all of the rest of my stationary power tools) from a guy who was liquidating his shop. I examined the saw and realized that I had not been setting the damned thing up correctly. Not one of the cuts I had tried with it had been successful until today. Today I adjusted the tensioner more carefully and realized that I had not been properly adjusting the blade guide. After having done this the saw cut like a dream. Lesson learned – adjust your bandsaw carefully for each situation and it will cut much, much better.

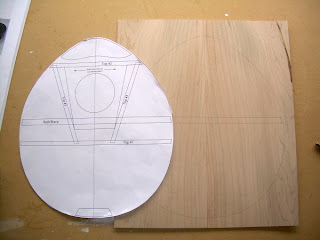

I used the bandsaw to cut out the back and sides (the instructions tell you to leave about ¼” proud for later trimming to the actual shape of the instrument). Because I was not being very careful about accuracy since I was leaving the cut proud it went fast. I first had to mark the brace on the back and trace the outline (the left photo) and then cut it out on the bandsaw (the right photo).

Flush with my success I then cut out the top as well.
